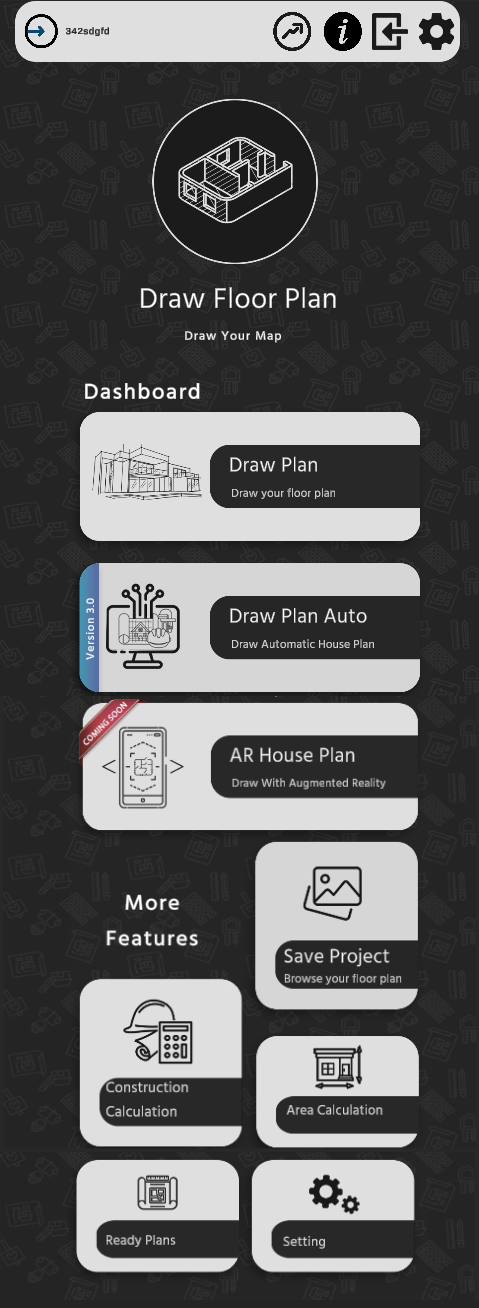

After installing the Draw Floor Plan app, open it to access the home screen where you’ll find options like creating a new plan, opening saved projects, or exploring templates.

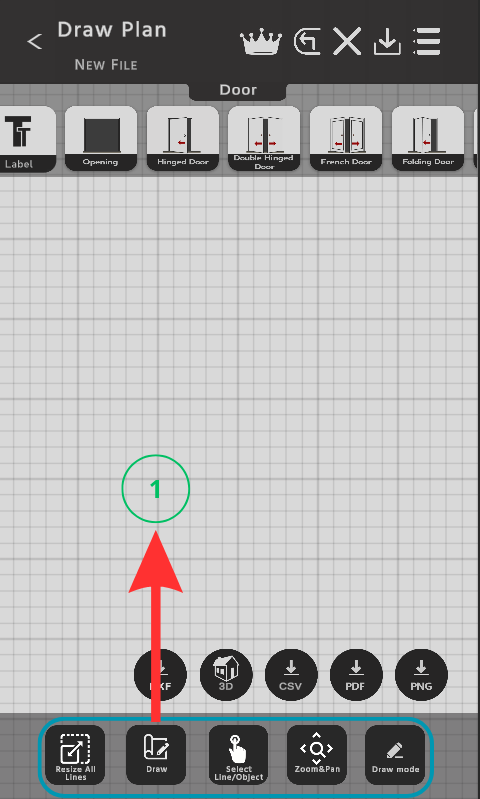

Select the wall tool and start drawing your floor layout by tapping and dragging on the grid. You can adjust dimensions later for precision.

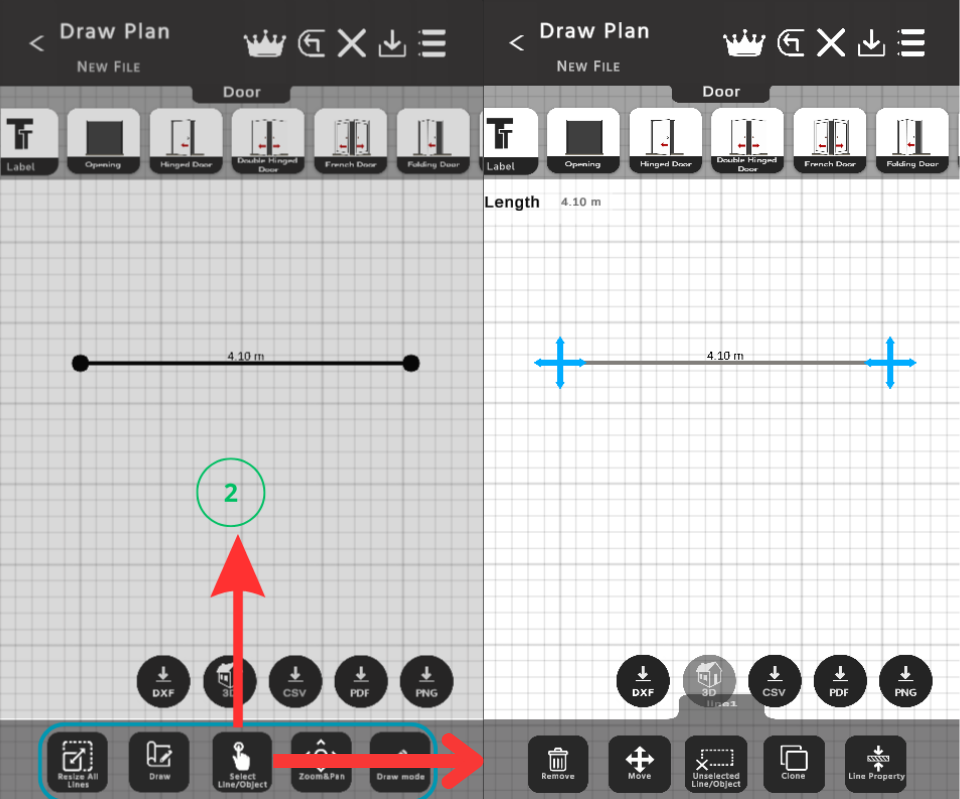

After Tab Select Line / Object Button Tap on any line or object in your plan to select it. Once selected, you can move, resize, rotate, or delete it. This gives you full control to edit your floor layout with precision.
To unselect a line or object, tap the Unselect Line / Object button on the screen. This clears the current selection so you can continue working freely on your floor plan. like draw new line and build room

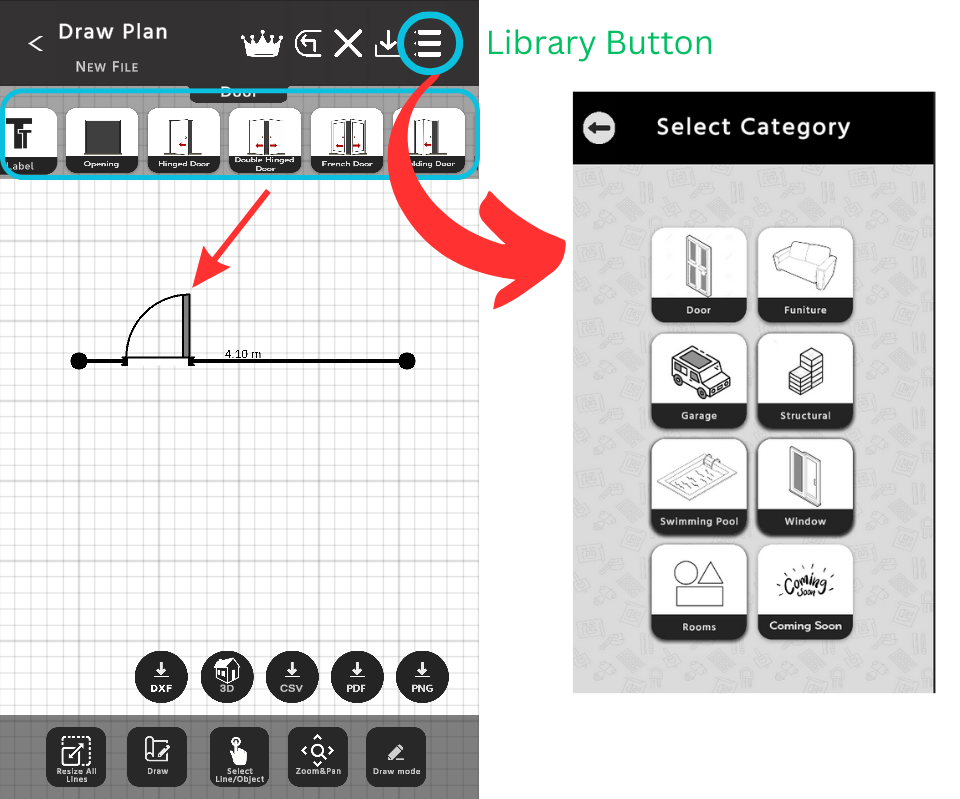

To insert doors, windows, furniture, or other items into your plan click any button that is hightlight, if you want other item click the Library button in the top-right corner of the screen. This opens the graphics library where you can choose and place any object into your floor plan. Simply tap the item you want, then place it on the layout.

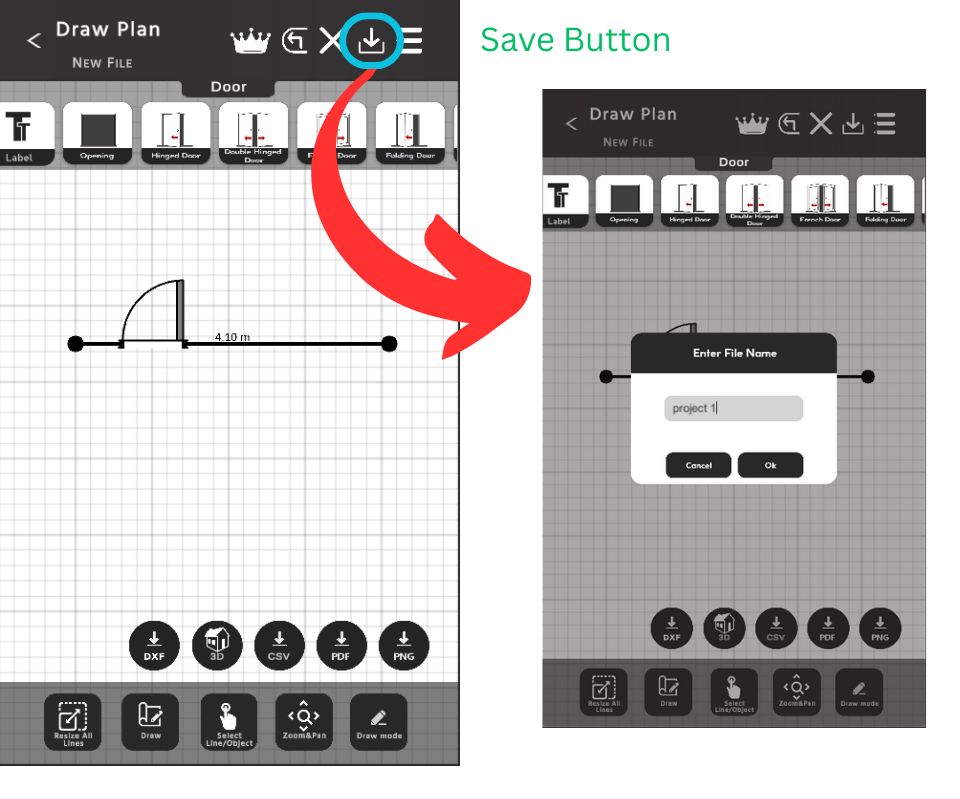

It’s important to save your progress. Just click the Save button located near the Library button at the top-right corner of the screen. A popup will appear where you can type a filename. Press OK and congratulations — your file is now saved for future use!
It’s important to save your progress. Just click the Save button located near the Library button at the top-right corner of the screen. A popup will appear where you can type a filename. Press OK and congratulations — your file is now saved for future use!

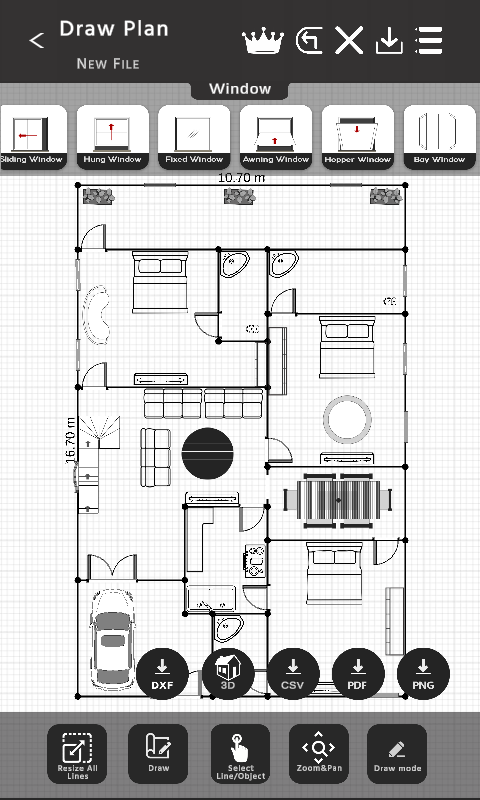

Here is a simple example home plan created using Draw Floor Plan. This is just a small demonstration — you can easily design more detailed and advanced projects using the same tools. Explore your creativity and build anything from simple rooms to complete house layouts.

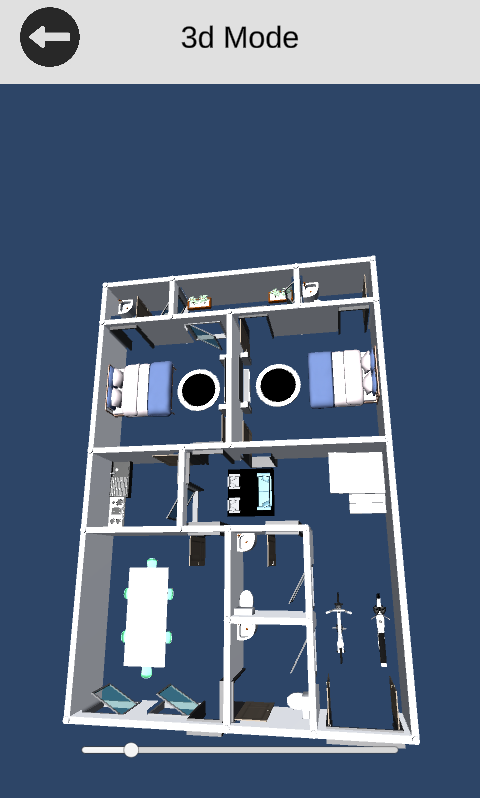

Once your plan is ready, you can also view it in 3D mode. This helps you visualize your rooms, doors, windows, and furniture in a realistic way. Here’s a small 3D example — you can create and customize much more complex designs for your projects.
